VP300 Video Pointer


Out of stock

SKU: VP300 Categories: ,

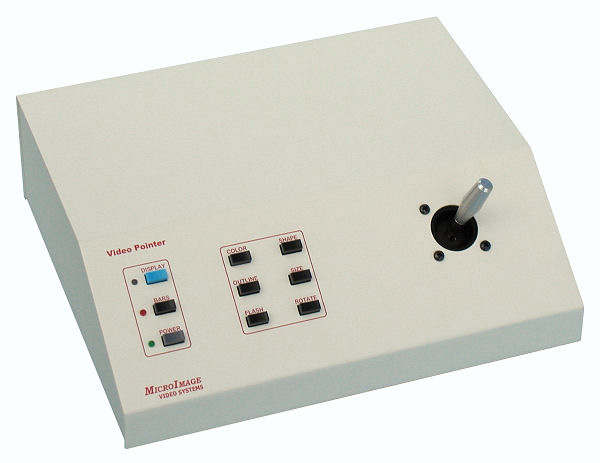

The latest VP series of video pointing devices from MicroImage Video Systems, the VP300, improves on virtually every aspect of our previous models, while retaining their legendary ease of use. The new units incorporate substantial digital processing and timing for solid performance. As always, the new pointers will work with most common NTSC and PAL video formats including S-Video, composite video and black & white video. RGB (with or without external sync) is available as a custom order item.

The MicroImage Video Systems? VP300 is the latest generation of video pointers. Included are many enhancements while at the same time reducing the size and cost compared to the previous generation units. The VP300 supports S-Video, composite and black & white video sources.

Video pointers are commonly used in presentations, classrooms, video instruction, surgery and forensic documentation to highlight a specific item on the display. They are especially useful when an image is displayed on more than one monitor, since the pointer can be active on all monitors at the same time. Video pointers are also used in applications where the personnel must be kept at a distance, such as surgery or remote testing. As opposed to traditional methods of pointing (finger, laser/stick pointers or grease pencil), the electronic image of the video pointer is easily recorded on video tape or printed with a video printer.

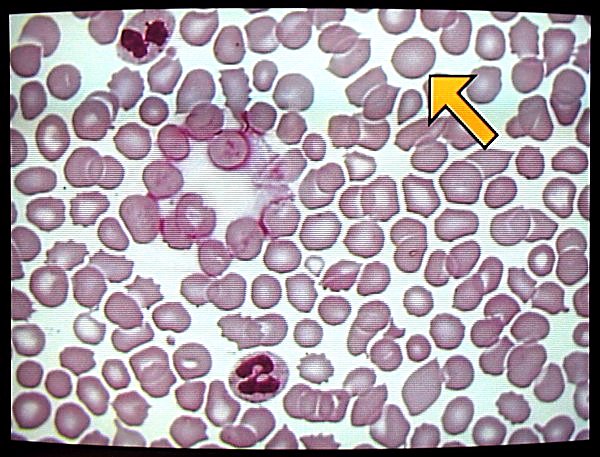

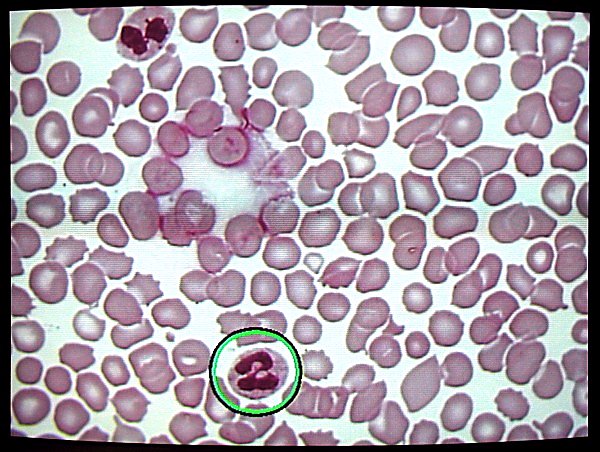

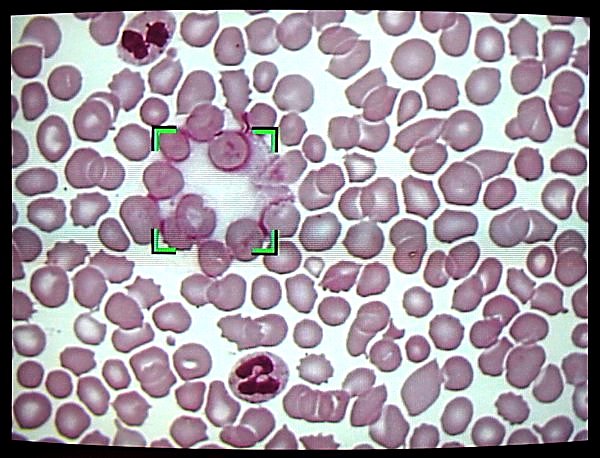

The video pointer allows the user to place an arrow, box, circle or cross hair symbol on the video display and move it to virtually any position with a joystick control. Each shape is available in several sizes for maximum flexibility. Arrows may also be rotated to one of eight directions. There are dedicated switches to select shape, size and rotation.

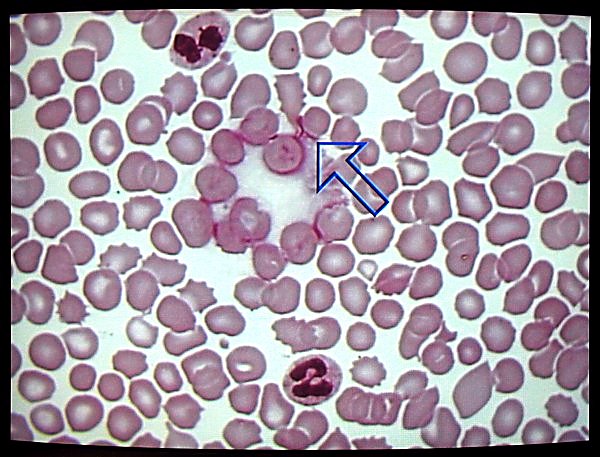

The symbol display may have an optional border enabled, which will make it appear more prominent on the display. The symbol color and the border color may each be set independently to one of eight colors or transparent. There is a switch to set the color and another to set the border color. Symbols will be displayed in color when using NTSC composite video, S-Video and RGB. When using a black & white video source, they are shown as shades of gray. PAL composite and S-video systems will only generate shades of gray, while PAL RGB will generate all colors.

The symbol may be turned on or off at any time, simply by pressing the display switch on the front panel. Turning off the display switch allows the video signal to pass through, but the symbol will not be displayed on the screen. The symbols can also be made to flash by pressing the “flash” switch, thereby drawing attention to the selected portion of the image.

A color bar test signal generator is built into the VP300. This makes it easy to color match and test multiple monitors in a classroom or similar application. Grayscale bars are produced for all monochrome systems and for PAL composite and PAL S-Video.

The VP300 will operate from a +12VDC (+10 to 20VDC) power source. A wall unit power supply is included with each unit. Please contact MicroImage Video Systems for units that operate with RGB video signals.

Rack mount and RoHS units are not available for this product.

The VP300 is available packaged (cased) or as a board level product for OEM applications. Power is provided by a universal?desktop power supply (included with cased products) or it can be operated from +12VDC (negative ground). Board level products do not include the power supply and a 12VDC power source must be provided.? The cased unit is packaged in a durable metal enclosure. Board Level, OEM and Custom products are also available. Please contact MicroImage Engineering for additional information.

The VP300 has a one year parts and labor limited warranty.

Printable Literature

Operation Manual

Key Specifications

Symbols Provided
Three sizes, eight directions
Four sizes
Four sizes
Four sizes
Four sizes
Color Bar Generator
SMPTE style bars. Monochrome only for PAL/CCIR composite & S-Video systems for all B&W systems.
Joystick positioner
Symbol select
Symbol size
Symbol rotation (arrow)
Symbol flash on-off
Symbol color
Symbol outline color
Symbol on-off
Color bars on-off
Power on-off
Input Levels
composite (VP300 only – standard)
S-Video [YC] (VP300 only – standard)
RGB (VP400 only – custom)
Sync (VP400 only – custom)
1.0 Vpp composite, 75 ohm
1.0 Vpp (Y), 0.286 Vpp burst level (C), 75 ohm (NTSC)
0.714 Vpp non-comp. or 1.0 Vpp comp., 75 ohm
0.3 – 5.0 Vpp, 75 ohm
Output Levels
Video signals Same as respective inputs +/- 3%, 75 ohm
composite (VP300 only – standard)
S-Video (VP300 only – standard)
RGBS (VP400 only – custom product)
BNC female
4 pin mini-DIN female (Std S-Video connector)
9 pin female D-Sub
Matte Colors Red, Green, Blue, Cyan, Yellow, Magenta, White, Black, Transparent.
Note: PAL composite and S-Video units do not produce color, only shades of gray.
Bandwidth Greater than 10Mhz
Non-Volatile Memory type EEPROM
System Microprocessor 16/32 bit
Display controller Custom MicroImage Video Integrated Display Controller
Image/Sprite Size (pixels) 32×32, 64×64, 96×96, 128×128
Pixel Size 81nS x 1 line (NTSC/RS170), 69.5nS x 1 line (PAL)
Remote Interface Optional – contact factory
0? – 50? C (32? – 122? F)
-40? – 60? C (-40? – 140? F)
10% – 90% (non-condensing)
0% – 95% (non-condensing)
Power Universal Adapter is included with NTSC/RS-170 units,ersal power supply
Voltage 12VDC (+9 to +20 VDC)
Consumption Approximately 230mA typical at +12VDC
Size 9.00″ (W) x 7.63″ (D) x 2.88″ (H)
229 mm (W) x 194 mm (D) x 73 mm (H)
Weight 1 lbs. 14 oz., (851g)
Country of Origin Manufactured in the USA by MicroImage Video Systems
Power Supply Country of Origin Taiwan or China
The VP300 is designed and manufactured in the USA by MicroImage Video Systems, Boyertown, PA, USA.
Cased units include a universal power supply (USA style power cord) and operation manual.
Board level products do not include a power supply module.
Specifications and prices are subject to change without notice
