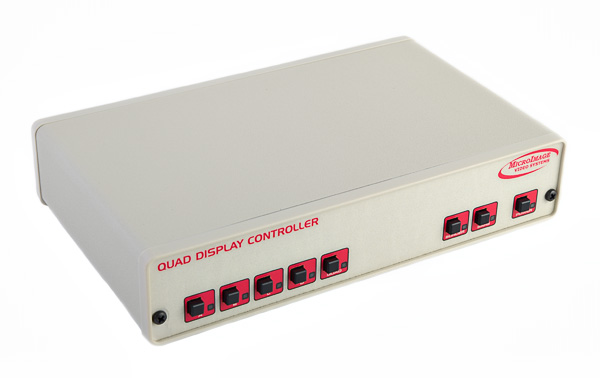

The MicroImage PXQ540 is a true high performance quad display controller designed for demanding applications. The MicroImage Video Systems Quad Display controller has been designed for industrial and professional applications. Operation is simplified with easy to use buttons to control commonly used functions rather than having to waste time in deep menus for common functions.
The input signals are standard composite video, in NTSC or PAL format (all must be the same format). Genlocked sources are NOT required. The source video signal can be almost any composite video signal from a studio camera to camcorders and even the output of a VCR. The system will lock to many signals, even those of less than perfect quality. Each of the four input signals has a dedicated memory area for frame synchronization.
In the quad display mode, an optional border line may be selected to divide the images. This border can be set to off, black, dark gray, light gray and white via a front panel switch.
Quad displays are commonly used for security or monitoring of multiple locations or angles at once. All four images can be easily recorded onto one medium eliminating temporal issues with multiple playback recordings.
Video conferencing typically has multiple people conversing at once and the quad display mode can be used successfully in this application.
Courtroom display systems, which are becoming increasingly popular can benefit from the quad image display and remote switching capability of the PXQ540.
Simultaneously displayed images allow for comparisons that are necessary in Forensics, Bio-Medical and industrial production. Displaying them on the same monitor allows very precise comparison. The output signal of the PXQ540 can also be sent to a video printer for a precise hardcopy.
The PXQ540 uses state-of-the-art, high performance digital signal processing (DSP) to maintain the highest quality video signals. This assures a consistent image will always be displayed. The PXQ540 will always produce both composite and S-Video signals simultaneously.
The PXQ540 family of products works with a variety of video sources and cameras. The PXQ540 will work with almost any video cameras (or other video sources) that have a composite output signal and meet the NTSC or PAL standard. Genlock is NOT required.
The standard RS232 control allows the PXQ540 to be controlled by a computer or other device or from a remote location. See the protocol definition manual for additional information.
A Rack mounting kit is available as an option.
Power is provided by a universal power supply (included) or it can be operated from +5VDC +/-5% (negative ground). The unit is packaged in a durable metal enclosure with plastic end bezels. Board Level, OEM and Custom products are also available. Please contact MicroImage Engineering for additional information.
A Rack mounting kit is available as an option. RoHS products are available for those countries that require units with RoHS compliance. RoHS units are lead-free.
The PXQ540 is available completely packaged (cased) or as a board level product for OEM applications. Power is provided by a universal desktop power supply (included with cased products) or it can be operated from +5VDC (negative ground). Board level products do not include the power supply and a 5VDC regulated power source must be provided.? The unit is packaged in a durable metal enclosure with plastic end bezels.?Board Level, OEM and Custom products are also available. Please contact MicroImage Engineering for additional information.
The PXQ540 has a one year parts and labor limited warranty.
