Description

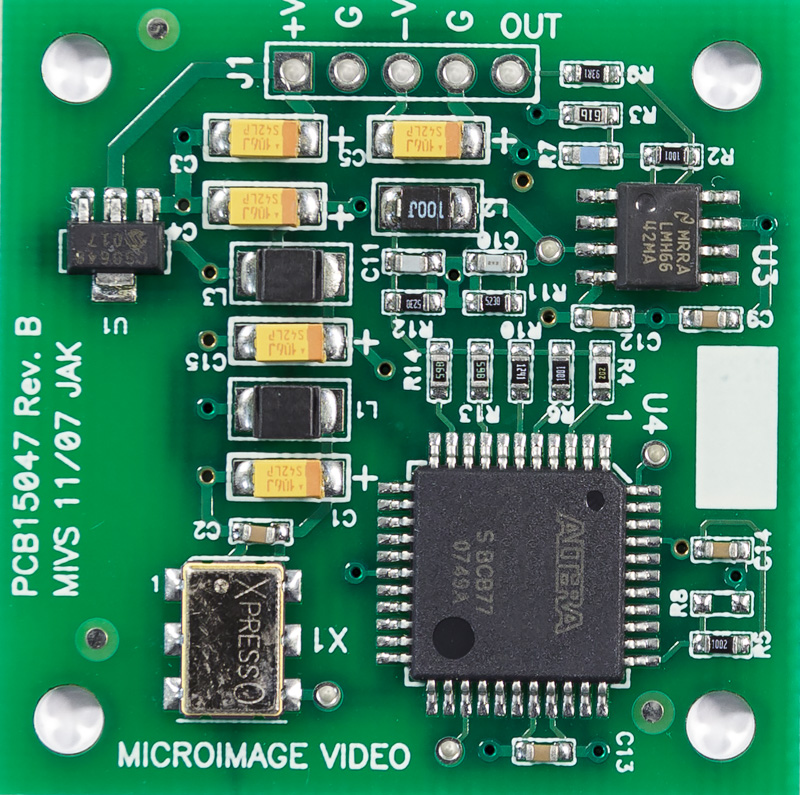

The PCS15047 is a very small monochrome/black & white bar test generator. The PCS15047 produces eight bars from white to black. The unit requires +5V and -5V regulated power supplies for proper operation and has an industrial temperature rating from -20C to +70C. Video timing is similar based on RS170(NTSC, 60HZ).

Three different versions are available:

PCS15047-01 – This version has a 1.4Vpp, 93 ohm output based on an RS343 standard.

PCS15047-50 – This version has a 1.0Vpp, 50 ohm video output.

PCS15047-75 – This version has the more common 1.0Vpp, 75 ohm video output.

OEM quantity discounts available for 10 or more pieces, please inquire.
