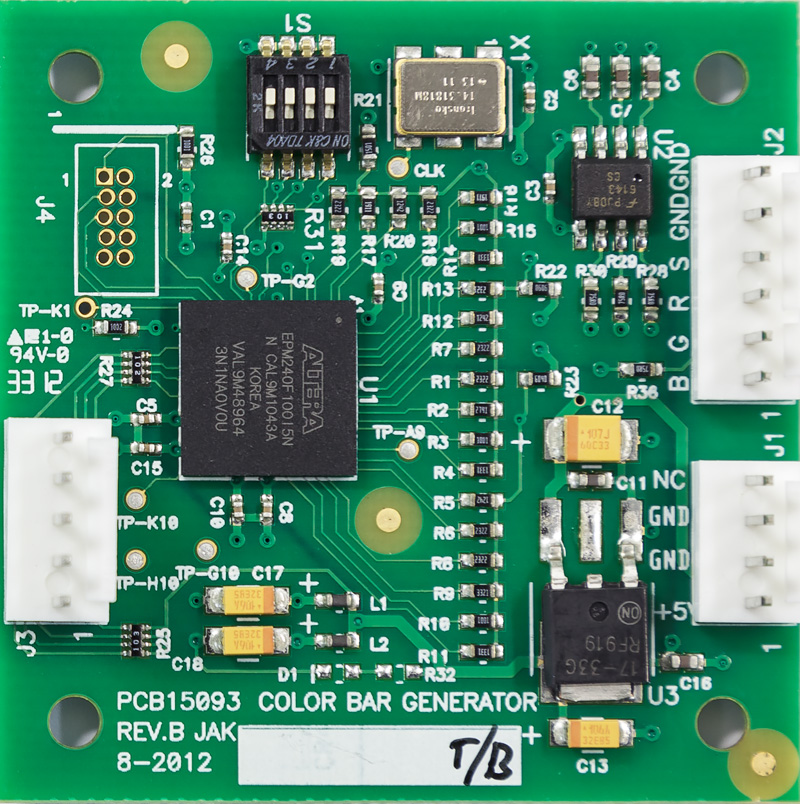

The BL-CBG402 is a small (2 inch x 2 inch) RGBS Color Bar Generator designed for embedded and systems?applications. It produces a split field SMPTE style color bar pattern and has either an external composite sync line of optional sync-on-green (set with an optional on-board DIP switch) Video timing is NTSC/EIA 60Hz field rate. The BL-SBG402 operates from a +5V regulated power source.
The BL-CBG402 has three industry standard 0.1 pitch headers for external connections. One for power, one is for the RGBS outputs and the third is for a remote control.
The remote port allows the out?signals to be changed from color bars to a flat field. Three additional connects allow the Red, Green and Blue channels to be turned off or on (in flat field or color modes).
OEM quantity discounts available for 10 or more pieces, please inquire.
