BL-PG314-01 Four Image Pattern Generator

$264.00

Only 2 left in stock (can be backordered)

SKU: BL-PG314-01 Categories: ,

Description

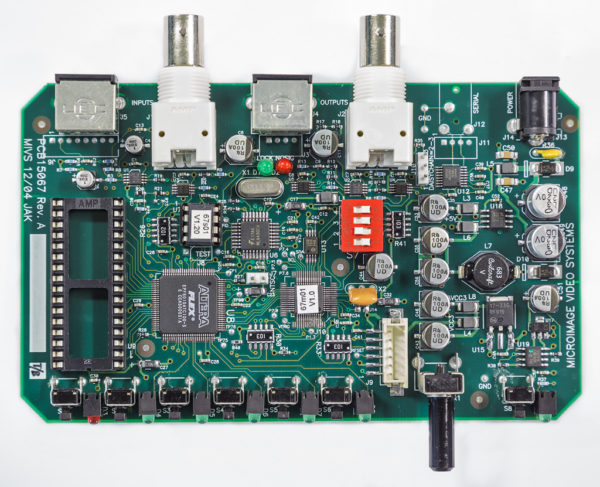

The MicroImage PG314 series of pattern generators are for applications to display custom designed patterns on screen. The PG314 units will overlay the pattern or patterns on top of the video signal provided to the input of the device. While the PG311 can be factory programmed with only one unique pattern, the PG314 can hold up to four patterns and switch between them.

The pattern image files can be sent to the factory as a bit mapped file, in GIF, TIFF, BMP and other formats. JPEG is not an acceptable format. The resolution can be either 320x240x1 or 640x480x1 for NTSC. For PAL, the resolution is 384×288 or 768×576 (only up to 512 of the 576 lines addressable in PAL).

The units have switches for Pattern Display on/off, Power on/off and a rotary control to change the brightness of the pattern. The PG314 also has individual switches to select each pattern.

Units are available to function with a variety of video signals. The PG314 work with composite, B&W and S-Video signals. The PG314N work with the NTSC/RS170 sync system, while the PG314P operate with PAL/CCIR.

Power is provided by a universal power module (included) or the unit can be powered from +12VDC (negative ground). DC power consumption is about 3 watts. The unit is packaged in a durable metal enclosure with plastic bezel assemblies.

The PG series of Pattern Generators are also available as board level products. These can be provided with the standardconnectors listed above or small single row “header” connectors. MicroImage Video Systems can also provide custom units to meet unique requirements. Please contact MicroImage Engineering for additional information.

The PG314 have a one year parts and labor limited warranty.

Printable Literature

Operation Manual

Key Specifications

Input level
Video 1Vpp composite 75 ohm
S-Video Y-1Vpp comp 75 ohm, C-286mVpp Burst 75 ohm
Output level
Video, S-Video Video – Same as respective inputs ?2% into 75 ohm
Connectors
Video BNC female
S-Video 4 pin mini-DIN female (standard S-Video connector)
Power 2.1mm coaxial power connector
Switches PG311 – (3) pattern display on, pattern display off, power
PG314 – (6) pattern 1 select, pattern 2 select, pattern 3 select, pattern 4 select, pattern display off, power
Sync System RS-170 (NTSC) or CCIR (PAL)
Pixel Resolution NTSC standard resolution – 320×240
NTSC high resolution – 640×480
PAL standard resolution – 384×288
PAL high resolution – 768×576
Number of patterns PG311 – 1 maximum
PG314 – 4 maximum
Bandwidth Greater than 30 Mhz
Gain Matching Typically within 2%
Temperature
Operating 0? – 50? C (32? – 122? F)
Storage -40? – 60? C (-40? – 140? F)
Humidity
Operating 10% – 90% (non-condensing)
Storage 5% – 95% (non-condensing)
Power
Voltage +9 to +20VDC (+12VDC typical), negative ground
Consumption 160mA typical @12VDC
Protection Automatic electronic fuse, internal, self resetting
Size 4.50″ x 5.60″ x 1.60″ (115 mm x 142 mm x 40 mm)
Weight 11 oz. (310g)
included Universal Power Module operates at 120-240VAC.
Manufactured in the USA by MicroImage Video Systems.
All units come with a power supply and operation manual.
Specifications are subject to change without notice
