CAB850xx

10 pin RM male to 12 pin HR male,
9 conductor wire (P/N 380-400-0009)

10 pin male

Wire for 10 pin male

BNC

Wire for
12 pin male

12 pin
male
1 No Connection Blue BNC Shield Blue Shield 1
5 No Connection 19" pigtail to conn.
wire covered w/Blue 3/32" heat shrink		   Blue Center 2
6 No Connection 19" pigtail to conn.
wire covered w/Green 3/32" heat shrink		 Green Center 3
- No Connection 19" pigtail to conn.
wire covered w/Red 3/32" heat shrink		 Red Center 4
9 Black Wire   Black Wire 5
10 Red Wire   Red Wire 6
- No Connection 19" pigtail to conn.
wire covered w/Yellow 3/32" heat shrink		 Yellow Center 7
2 White Wire (only)   Yellow Shield & White Wire 8
7 Orange Center   Orange Center 9
4 Brown Shield   Brown Shield 10
8 Orange Shield   Orange Shield 10
- No Connection Green & Red BNC Shields Green & Red Shields 11
3 Brown Center   Brown Center 12

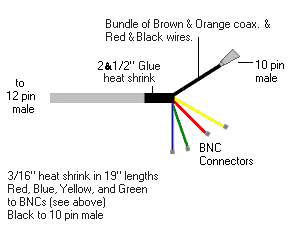

View from solder side:

10 pin RM male
P/N 150-007-1010

12 pin male HR
P/N 150-003-0120
