CAB40710A

10 foot 10 pin Male (RM) to 6 pin Female (HR),
6 conductor wire (P/N 380-400-0006)

10 pin male

Wire for 10 pin male

Signal

Wire for
6 pin female

6 pin
female

1 Blue NTSC Blue 5
2 Black Ground Black 4
3 Brown Y Brown 1
4 Green NTSC Ground Green 3
5 No connection - No connection -
6 No connection - No connection -
7 White C White 2
8 Jumper to pin 9 - Jumper to pin 9 -
9 Shield Power Ground Shield 3
10 Red +12V Red 6

* Heat shrink to prevent shorting to other wires with 1/8" heat shrink.
** Use #18 bus wire or equivalent to connect pin 2, 8, and 9.
Place 1" clear heat shrink near 10 pin end.
See diagram for other heat shrink instructions.

View from solder side:

10 pin male
P/N 150-007-1010

6 pin female
P/N 150-003-0060

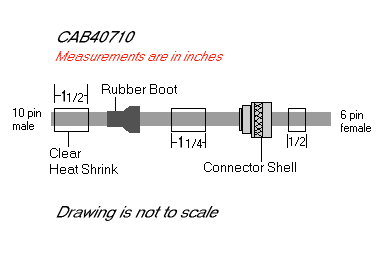

Assembly diagram
