CAB402xxA

10 pin Female to 15 pin Male D-Sub

10 pin
Female

Wire for
10 pin female

Signal

Wire for
15 pin Male

15 pin
Male

1 Blue NTSC Blue 2
2 Black Gnd Black 10
3 Brown Y Brown 4
9 Shield Gnd Shield 9
5 White RXD-Serial White 8
6 Yellow TXD-Serial Yellow 15
7 Orange C Orange 3
8 No Conn. - No Conn. 11
4 Green Gnd Green 12
10 *Red +12V *Red 1

Cable Part Number: 380-420-0008 [Belden 9538] (BP series only)

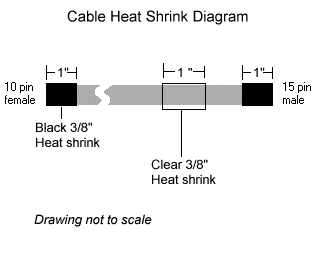

* Heat shrink to prevent shorting to other wires with 1/8" heat shrink.
Place 1" long piece of 3/8" black glue heat shrink on 10 pin end.
Place 1" of clear 3/8" heat shrink on 15 pin end for label.
Place 1" long piece of 3/8" black glue heat shrink on 15 pin end.


View from solder side:

10 pin female
P/N 150-007-0010

15pin male.gif (3138 bytes)
15 pin male
P/N 150-010-1150
