CAB402xxZ

10 pin Female to 15 pin Male D-Sub
(without RXD/TXD connections)

10 pin
Female

Wire for
10 pin female

Signal

Wire for
15 pin Male

15 pin
Male

1 Blue Center NTSC Blue Center 2
2 Blue Shield Ground Blue Shield 10
3 Yellow Center Y Yellow Center 4
4 Yellow Shield Ground Yellow Shield 12
5 No Connection - No Connection 8
6 No Connection - No Connection 15
7 Black Center C Black Center 3
8 Black Shield Ground Black Shield 11
9 Green Ground Green 9
10 *Gray +12V *Gray 1

Cable Part Number: 380-400-0007 [Mogami 9402] (Z series only)

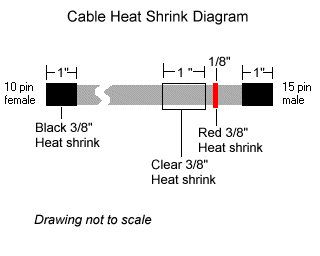

* Heat shrink to prevent shorting to other wires with 1/8" heat shrink.
Place 1" long piece of 3/8" black glue heat shrink on 10 pin end.
Place 1/8" long piece of RED 3/8" heat shrink as ID mark on 15 pin end.
Place 1" of clear 3/8" heat shrink on 15 pin end for label.
Place 1" long piece of 3/8" black glue heat shrink on 15 pin end.

View from solder side:

10 pin female
P/N 150-007-0010

15pin male.gif (3138 bytes)
15 pin male
P/N 150-010-1150
