CAB40710BP
10 foot 10 pin Male (RM) to 6 pin Female (HR), 2 pair cable

10 pin male

Wire for 10 pin male

Signal

Wire for
6 pin female

6 pin
female
1 White Composite White 5
2 Jumper to pin 4, 8, 9 Ground Shield 4
3 Black Luminance (Y) Black 1
4 Jumper to pin 2, 8, 9 Ground - -
5 N/C - N/C -
6 N/C - N/C -
7 Green Chroma (C) Green 2
8 Shield Ground Shield 3
9 Jumper to pin 2, 4, 8 Ground - -
10 Red* +12VDC Red* 6

Cable Part Number: 380-410-0003 [Belden #8723 type 2 pair] (BP series only)
 * Heat shrink on red wire to prevent shorting to other wires with 1/8" heat shrink.
** Use #22 bus wire to connect pin 2, 4, 8, and 9 on 10 pin connector.
*** Use #22 bus wire to connect pins 3 and 4 on 6 pin connector.
Place 1.5" clear heat shrink near 10 pin end.
 See diagram for other heat shrink instructions.

View from solder side:

P/N 150-007-1010

6 pin female
P/N 150-003-0060
or
P/N 150-003-0061

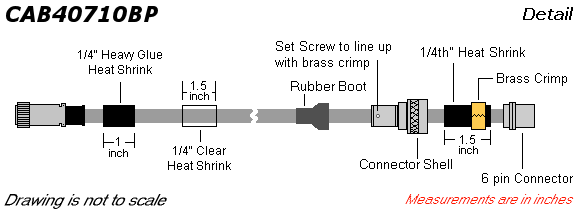

Assembly diagram
